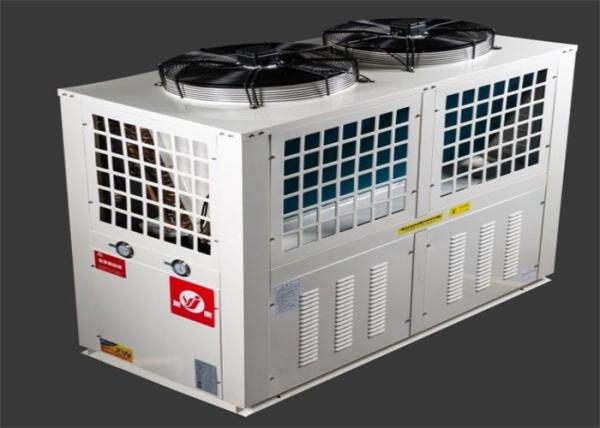

Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H

    Buy cheap Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H from wholesalers

    Buy cheap Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H from wholesalers
    • Buy cheap Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H from wholesalers

    Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H

    Ask Lasest Price
    Model Number : YW-35D(10P)
    Brand Name : YouJIA New energy
    Certification : CCC, ISO, CQC
    Price : Negotiable
    Delivery Time : 1-2 weeks
    Payment Terms : T/T
    Supply Ability : 10 sets/day
    • Product Details
    • Company Profile

    Durable Commercial Air Source Heat Pump IP×4 1590*850*1600mm 6.43m³/H

    Schools Hotels Commercial Heat Pump Easy Installation Cooling Mode 35.4 KW


    ASHPs are often paired with auxiliary or emergency heat systems to provide backup heat when outside temperatures are too low for the pump to work efficiently, or in the event the pump malfunctions. Since ASHPs have high capital costs, and efficiency drops as temperature decreases, it is generally not cost-effective to size a system for the coldest possible temperature scenario, even if an ASHP could meet the entire heat requirement at the coldest temperatures expected. Propane, natural gas, oil or pellet fuel furnaces can provide this supplementary heat.



    Common commercial type


    Applicable to schools, hotels, hospitals, factories, communities, clubs and other places where heating, cooling and hot water are required.



    Imported fully enclosed scroll compressor with low noise;


    The main components are all imported brands;


    It can realize 45%~100% four-level energy regulation or frequency conversion adjustment;


    Intelligent control, efficient and safe, easy to operate;


    Intelligent defrosting design;


    Small footprint, no need for machine room, easy installation and maintenance;


    Widely used in public facilities such as hotel shopping malls, office buildings.

    Heat pump function: Heating, cooling, hot water


    Unit parameters:


    Unit TypeYW-35D(10P)YW-70D(20P)YW-140D(40P)

    Rated power/frequency


    380V 3N~/50HZ

    Cooling mode


    Cooling mode(KW)35.470.8141.6
    input power(KW)11.1622.3246.4
    Heating mode

    Nominal condition

    (7℃)

    Heating(KW)28.857.6115.2
    Rated input power(KW)10.821.643.2

    Low temperature condition

    (-12℃)

    Rated heating capacity

    (KW)

    23.847.695.2

    Rated input power

    (KW)

    9.819.639.2
    Maximum input current(A)27.755.4110.8
    Circulating pump flow (m³/h)6.4312.8725.72
    Refrigerant/charge(R22/Kg)91836
    Hot water rated temperature45℃

    Refrigeration inlet and outlet water temperature
    5~15℃
    Hot water maximum temperature55℃
    waterproof levelIP×4
    Anti-shock protection categoryI Grade
    Ambient temperature range30~40℃
    Unit noise db(A)≤60≤65≤65
    Unit weight(Kg)3206501300
    Unit size(mm)1590*850*16002000*1100*20902200*2000*2170
